HOLEC is limited to 3000 A RMS current, and the RMS decays nonlinear.
1 SFTPRO1 drives RMS current 0 → 2000. Next one goes to 2500 A. Third one trips the power converter.
I RMS decay:
| Time | I RMS |
|---|---|
| 0 | 3000 |
| 12.5 | 2500 |
| 12.0 | 2000 |
| 18.7 | 1500 |
| 24.2 | 1000 |
| 46.2 | 500 |
| 90.6 | 100 |
 |

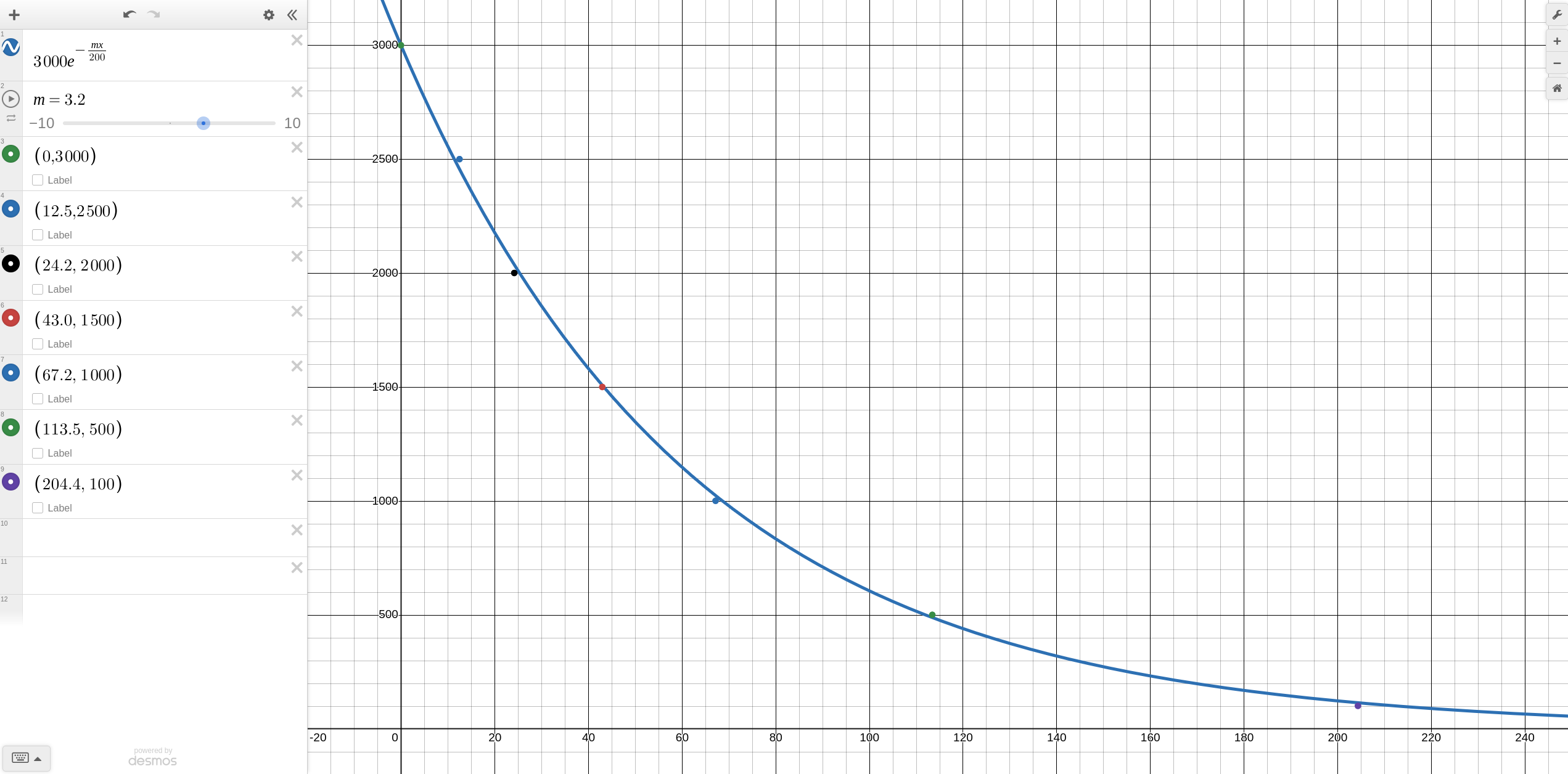

RMS I decay seems to fit , equivalent to
Experiments with cycle sequences
LHCINDIV (4inj) + MD1 seems stable with I RMS max at 2500 A. AWAKE1 + HIRADMT1 seems stable on IRMS max at 2700 A LHCPILOT + MD1 stable at 2920 A I RMS SFTSHIP + MD1 stable at 2720 A I RMS
Measurements of currents seem to overshoot by 0.25%,. For the LHCPILOT which maxes out at 5785 A in LSA, but the measured current is 5897 A, and for the SHIP which measures at 4825, but is in fact 4814 A in LSA.
