Supercycles

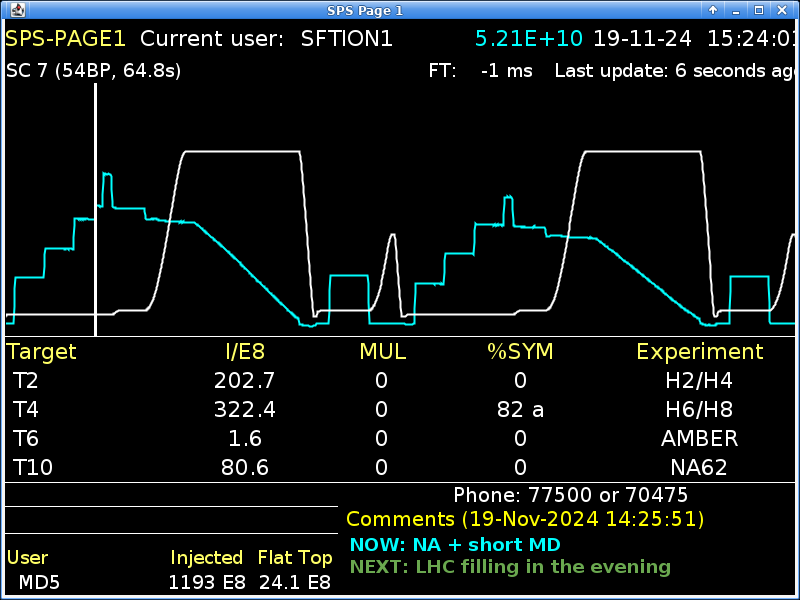

Supercycle 1

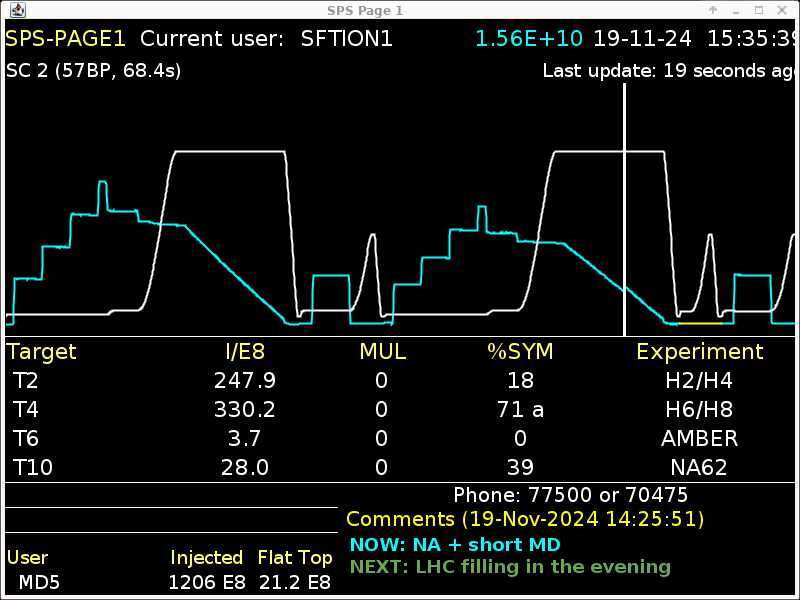

Supercycle 2

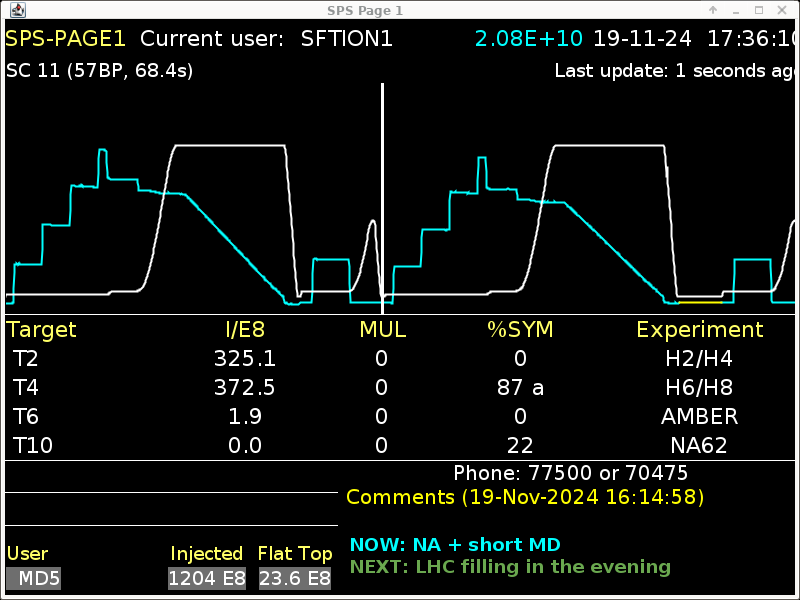

Supercycle 3
Logbook entry: https://logbook.cern.ch/elogbook-server/GET/showEventInLogbook/4187192
Followed up in 2024-11-20 - WP4 Update meeting Note the poor B-Train measurements detected with 2024-11-21investigated with Vincenzo 2024-11-21
Trims retrieved on 2024-11-21
Preparation
- Re-train Gloria on dataset with Ion cycles [priority:: highest] [due:: 2024-11-15] [completion:: 2024-11-20]
- Find out where to get dataset with both ion and 200 GeV MD cycles [completion:: 2024-11-20]
Training data
MD will play SFTION - MD - SFTION - MD.
We take training data from parallel MD MD14423 which plays the same type cycle interleaved with SFTION.
We train on data
2024-11-05 06:41:49.335000+00:00 - SFTION1
2024-11-05 06:42:14.535000+00:00 - ZERO
2024-11-05 06:42:15.735000+00:00 - LHCION2
2024-11-05 06:42:28.935000+00:00 - MD1
2024-11-05 06:42:32.535000+00:00 - SFTION1
2024-11-05 06:42:57.735000+00:00 - ZERO
2024-11-05 06:42:58.935000+00:00 - LHCION2
2024-11-05 06:43:12.135000+00:00 - MD1
2024-11-05 06:43:15.735000+00:00 - SFTION1
2024-11-05 06:43:40.935000+00:00 - ZERO
2024-11-05 06:43:42.135000+00:00 - LHCION2
2024-11-05 06:43:55.335000+00:00 - MD1
2024-11-05 06:43:58.935000+00:00 - SFTION1
2024-11-05 06:44:24.135000+00:00 - ZERO
2024-11-05 06:44:25.335000+00:00 - LHCION2
2024-11-05 06:44:38.535000+00:00 - MD1
2024-11-05 06:44:42.135000+00:00 - SFTION1
2024-11-05 06:45:07.335000+00:00 - ZERO
2024-11-05 06:45:08.535000+00:00 - LHCION2
2024-11-05 06:45:21.735000+00:00 - MD1
2024-11-05 06:45:25.335000+00:00 - SFTION1
with
dataset_ = BTrainDataset.from_nxcals(
start="2024-11-05 08:41:40",
end="2024-11-05 08:45:37",
)
and saved to ~/cernbox/hysteresis/dipole/datasets/MD20241119/SPS-BTRAIN-20241105-064149---20241105-064525.parquet
